Metered PDUs (Power Distribution Units)

Metered Rack Cabinet PDUs provides local current display of Amps (Amps, Volts, Kw, Kw/hr, hz). Metered Rack Cabinet PDUs have a local current display showing True RMS Real Time Amp Monitoring of connected loads.



  Amp Monitoring Per Bracnh Circuit or entire PDU

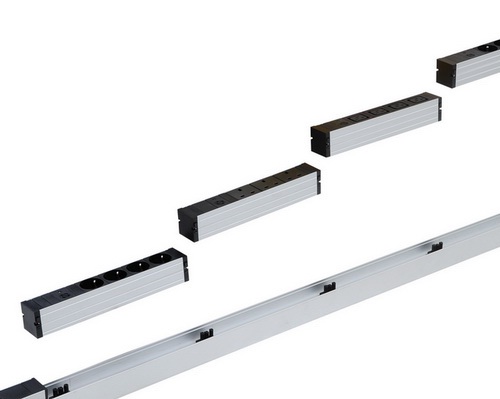

This is a picture of a modular IEC C13 C19 PDU

Metered Modular PDU new

  • Outlet Types: Banks of 8 sockets in IEC C13 or IEC C19
  • Input/Voltage: 32A / 400V
  • Metered: 1 local LED Current Amp Meter
  • Protection: Circuit Breaker/Busman Fuses: 1-8
  • No downtime when adding banks of sockets for higher density
Coming Soon

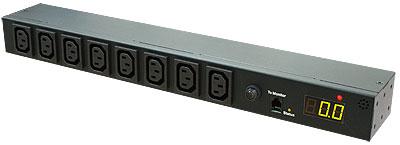

This is a picture of a 8 way smart PDU with IEC C13 sockets

8 way Metered PDU

  • Outlet Types: (8) IEC 60320/C13 10A
  • Input/Voltage: 16A / 230V
  • Metered: 1 local LED Current Amp Meter
  • Protection: Circuit Breaker/Busman Fuses: 1 Only
  • Uplink Port to be a Smart IP Monitored PDU
Larger Image

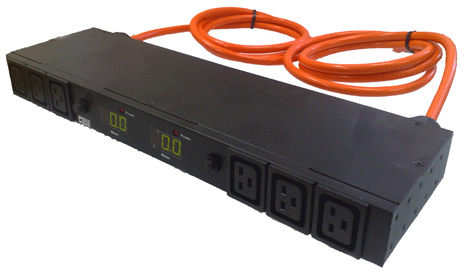

  This is a picture of a 8 way IEC C19 metered PDU

8 way Metered IEC C19 PDU dual

  • Outlet Types: (8) IEC 60320/C19 16A
  • Input/Voltage: Dual 16A & 32A / 230V
  • Metered: 2 local LED Current Amp Meters
  • Protection: Circuit Breaker/Busman Fuses: 2
  • Dual Uplink Ports to be a Smart IP Monitored PDUs
Larger Image

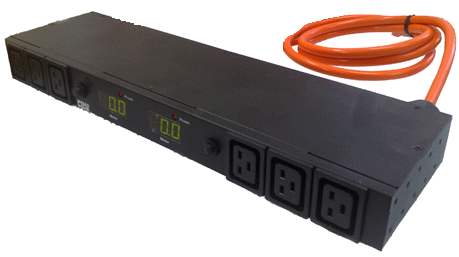

  This is a picture of a 8 way IEC C19 metered PDU with single input power cord

8 way Metered IEC C19 PDU

  • Outlet Types: (8) IEC 60320/C19 16A
  • Input/Voltage: 16A & 32A / 230V
  • Metered: 2 local LED Current Amp Meters
  • Protection: Circuit Breaker/Busman Fuses: 2
  • Dual Uplink Ports to be a Smart IP Monitored PDUs
Larger Image

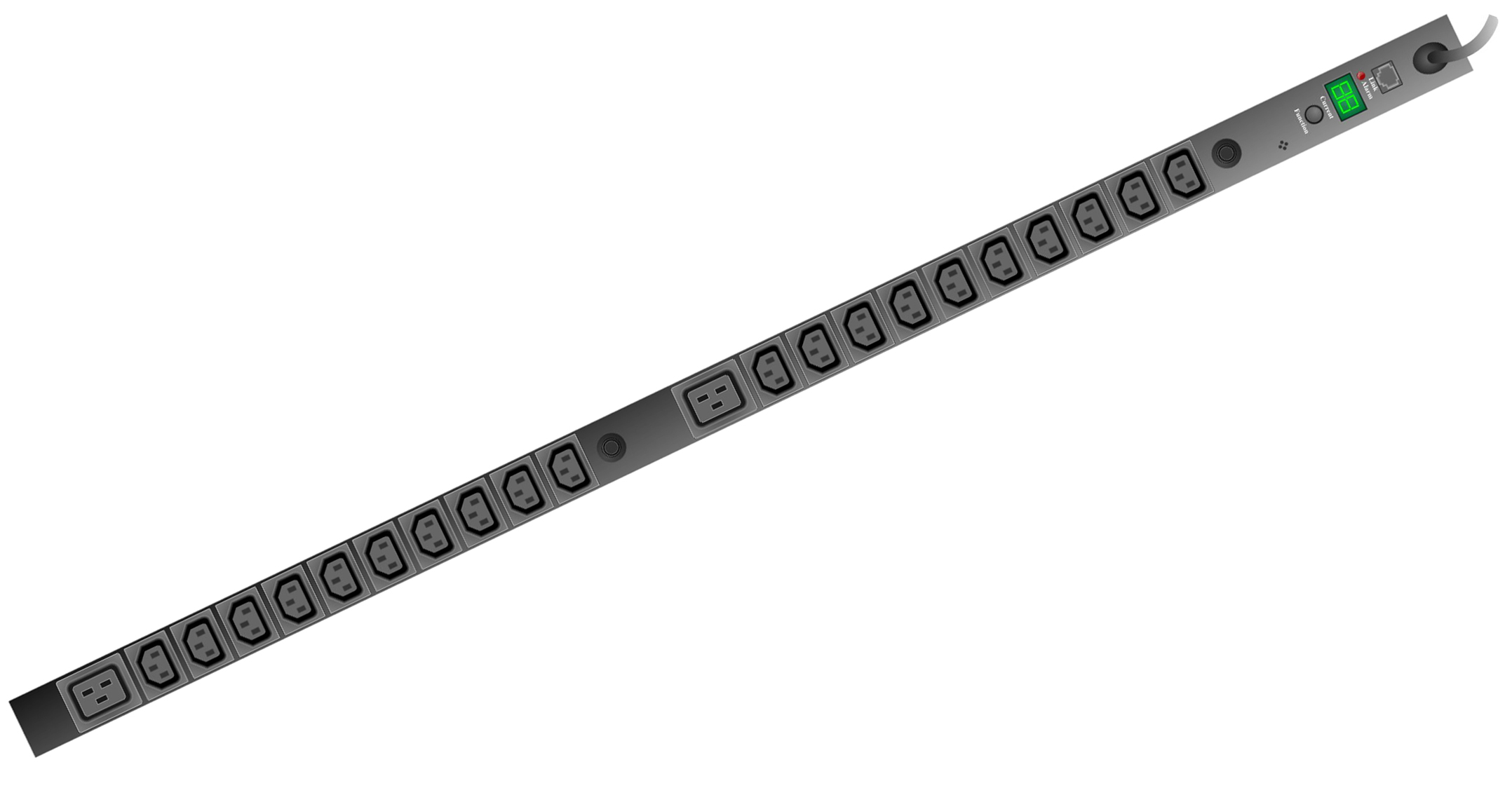

 This is a picture of a 22 way Slimline metered PDU

22 way Metered PDU

  • Outlet Types: (20) IEC 60320/C13 10A, (2) IEC 60320/C19 16A
  • Input/Voltage: 16A & 32A / 230V
  • Metered: 1 local LED Current Amp Meter
  • Protection: Circuit Breaker/Busman Fuses: 2
  • Uplink Port to be a Smart IP Monitored PDU
  • Slimline (40mm wide) PDU Design
  • IEC Clip Protection per socket
Larger Image

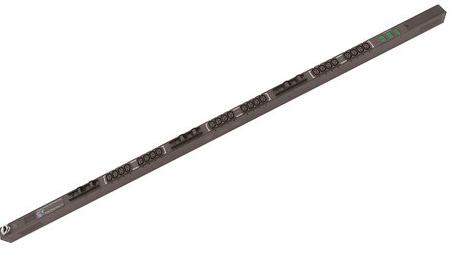

 This is a picture of a 24 way IEC C13 metered pdu

24 way Metered PDU

  • Outlet Types: (24) IEC 60320/C13 10A
  • Input/Voltage: 16A & 32A / 230V
  • Metered: 1 local LED Current Amp Meter
  • Protection: Circuit Breaker/Busman Fuses: 3
Larger Image

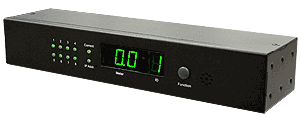

 This is a picture of an 8 port Smart IP PDU Controller
This is a picture of an 8 port Smart IP PDU Controller

8 port Smart/Monitor PDU Controller

  • Outlet Types: (8) RJ ports for PDU Monitoring
  • Input/Voltage: 10A / 230V
  • Metered: 1 local LED Current Amp Meter & (8) light neons
  • Protection: Circuit Breaker/Busman Fuses: 1

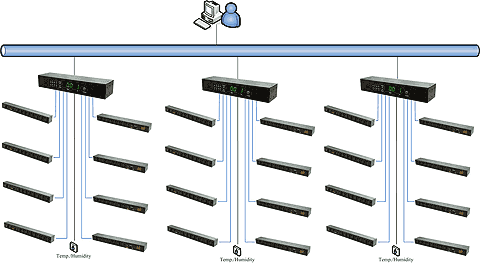

  • Monitor (8) metered PDUs via a web browser
Larger Image
