1RU 22" Wide Screen LCD KVM Drawer

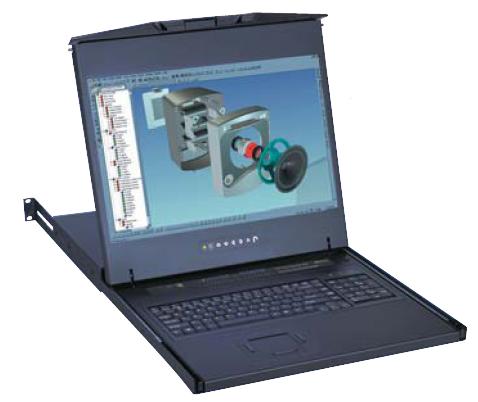

This is a picture of a 1RU 20
  • Wide Screen 22" & 19" Samsung A Grade Panel
  • High Resolution of up to 1680 x 1050 (22" model)
  • Cat6, PS/2 & USB KVM Connectivity
  • Single Person Installation kit available
  • IP Connectivity Options
  • Over IP Multi User Options & BIOS Control

LCD Drawer & KVM Benefits

  1. High Resolution 1680 x 1050 in a 22" LCD Drawer (different for 19")
  2. High Density Cat6 KVM with either 8, 16 or 32 ports in 1RU of rack space
  3. Cost effecient DB-15 KVM integration
  4. Singel or 'One Person' installation slides for easy, quick installation
  5. 104 key notebad keyboard with full numerical pad
  6. Mix PS/2, USB and SUN with Multi-Platfrom switch capability
  7. Secure remote usser access across HTTP/HTTPS

1RU LCD Drawer Features & Options

  1. 1RU rackmount drawer in a Wide Screen 19" & 22" SAMSUNG LCD
  2. High Resolution in Wide Screen of 1440 x 900 & 1680 x 1050
  3. Either PS/2 or USB input to the LCD drawer by cable selection
  4. Multiple keyboard language selections with eiether touchapad or trackball mouse
  5. Slide rails with fixed positions to prevent drawer movement when typing
  6. Multi lingual OSD (On Screen Display Menu)
  7. 12, 24, 48 volt DC power options

Options High Density Cat6 KVM integration

Over IP Group offers high density integrated 16 & 32 port Cat6 KVM switches, designed to provide added benefits to its users. The KVM switch range offers increased density, increased distances (40m) between switch and server, enhanced cable management and multiplatform capabilities over traditional KVM Switch platforms. Using either a PS/2or USB dongle at the server end of the installatin allows a user to cost effectively specify the switch to match the exact server configurations - multiplatform switches allow older or redundanct server to be migrated to servers with newer USB interfaces without replacing switch hardware.

Secure Remote or Four (4) Console KVM with optional IP Access

A second, third or forth user can work securely via a remote keyboard, monitor and mouse either across a Cat6 link of 300m with the building or across HTTP/HTTPS using 128 bit encryption secure IP access. This plug and play technology requires no software to be installed on the server or remote PC's but provides seamless secure access either over Cat6 cable or via IP and a web browser. Secure IP access allows the ultimate server control even to BIOS level of your servers.

IP KVM Screen Shot

This is a picture of a IP access web screen shot into a 32 port KVM

Notebook Keypad with a Touchpad Mouse

This is a picture of a 104 notebook keypad with a touchpad mouse

Notebook Keypad with a Trackball Mouse

This is a picture of a 104 notebook keypad with a touchball mouse


This is a picture of a 1RU 20 Type: 1RU Wide Screen High Resolution 19" & 22" LCD Specifications
 Dimensions  17.4(W) x 25.6(D) x 1.73(H) in. / 442(W) x 650(D) x 44(H) mm
 Net Weights  26 kg / 57 lbs
 128 bit encryption security
Screen Qualitiy This is a picture of a SAMSUNG logo

Samsung A Grade Panel
Multiple Users
 Multiple User Access with user or adminstrator rights
Designed for
This is a picture of IBM, HP, Dell & SUN's logos
Virtual Media
 Virtual Media Support Via:
  - Floppy Disk
  - CD Rom Image
  - Drive Redirection
  - USB Mass Storage

  - AV Input
  - DVI Input
  - BNC Input
  - DC Power Input

 Telnet Serial Connection enabled
Power Input
 100 ~ 240V AC
 IEC C14 10A Socket with on/off switch
 DB-15 Serial Connection on rear panel
Network Protocol  HTTP, SNMP, DHCP, BTelnet, SMTP
 Mini USB on rear panel
Firmware Upgrade  Network Upgrade
 Serial Upgrade (for recovery use)
System Security
 128 bit enrcyption security
Event Log
 On board logging, with NFS, SMTP & SNMP logging available

 Manufacturing is ISO14001 and ISO9001 Certified

Display Type
 Active Matrix TFT
Native Resolution
 19": 1440 x 900                        22": 1680 x 1050
Brightness (cd/m2)
Contrast Ratio
 1000 : 1
Viewing anlge
Horizontal / Vertical
 19": 160 / 160                          22": 170 / 160
Display Colour
 16,700,000 colours
Response time
 19": Tr=1.3 / Tf=3.7                  22": Tr=3.6 / Tf=1.4
Pixel Pitch
 19": 0.284 x 0.284                    22": 0.282 x 0.282
 Warranty  Two years




Opening Capability Diagram (mm)

This is a picture of a 1RU 22 inch wide screen LCD drawer

Exploded View

This is a picture of an exploded view of a 1RU 19
