1RU Keyboard Drawer KVM

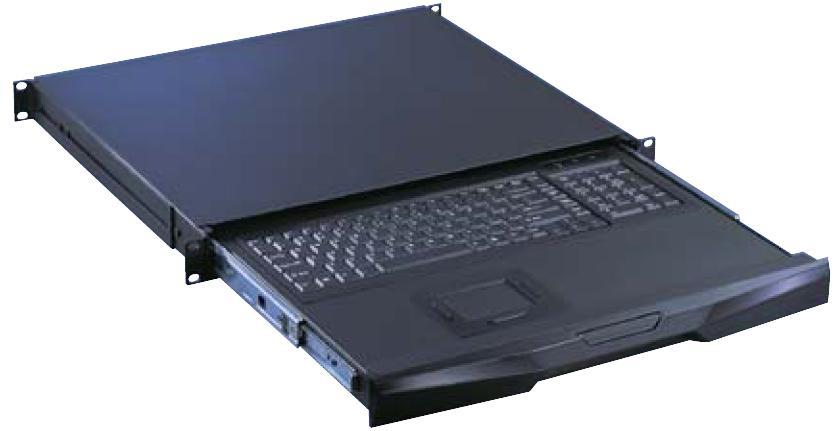

This is a picture of a 1RU Kyeboard tray with full numeric notebook style keys
  • Short Depth Design of 400mm
  • Cat6, PS/2 & USB KVM Options
  • Single Person Installation kit available
  • IP Connectivity Options
  • Cherry Keyboard, Compact designs



Keyboard Drawer Benefits



  1. Short depth design of 400mm
  2. Lockable drawer to secure keyboard and mouse access



Drawer Features and Options



  1. Either PS/2 or USB input to the LCD drawer by cable selection
  2. KVM Integration (will increase depth) of PS/2, USB and Catx Technology
  3. Multiple keyboard language selections with either touchpad or trackball
  4. Slide rails with fixed positions to prevent drawer movement when typing
  5. 2 Point lock with moleed front panel

Notebook Keypad with a Touchpad Mouse

This is a picture of a 104 notebook keypad with a touchpad mouse

Notebook Keypad with a Trackball Mouse

This is a picture of a 104 notebook keypad with a touchball mouse



This is a picture of a 1RU Kyeboard tray with full numeric notebook style keys Type: 1RU Keyboard Drawer Specifications
 Dimensions  17.4(W) x 15.7(D) x 1.73(H) in. / 442(W) x 400(D) x 44(H) mm
 Net Weights  6 kg / 13 lbs
KVM Options
8, 16, 32 ports, local user, IP users, Multi User Matrix 4 users
Supporting Layouts
This is a picture of a flags from UK, USA, China, Germany, Japan and more for OSD supporting languages
Multiple Users
 Multiple User Access with user or adminstrator rights
Designed for
This is a picture of IBM, HP, Dell & SUN's logos
Hot Keys
 Toggle Between each port on the KVM for quick hot key functionality
Options

  - AV Input
  - DVI Input
  - BNC Input
  - DC Power Input

Front Panel
 Membrane on front panel to indicate which KVM is present
Power Input
 100 ~ 240V AC
 IEC C14 10A Socket with on/off switch
 Warranty  Two years

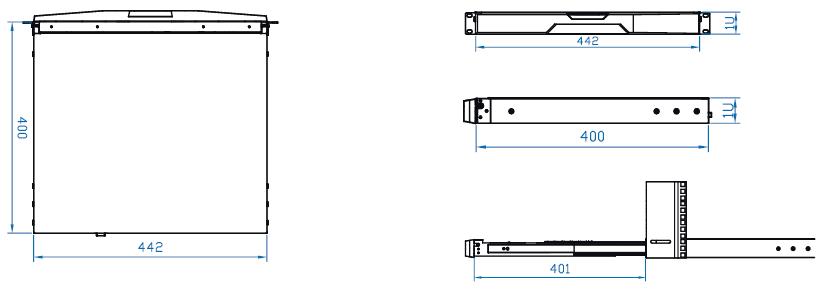

Opening Capability Diagram

This is a picture of a 1RU keyboard drawer diagram in millimetres
