1RU LCD Drawers Only

This is a picture of a 1RU 18

  • 17", 19", 20", 22" Samsung A Grade LCDs
  • High Resolution Displays
  • Short Depth Options
  • Wide Screen Formats
  • Quad Display Funtionality
  • High Brightness Ability



LCD Panel Benefits


  1. Wide range of applications including industrial control, Military, Computer Room & CCTV security
  2. 1RU rackmount design that allows the LCD to remian in the OPEN position when the rack door is closed
  3. Built in Quad Display
  4. Ideal for CCTV Secuirty and Industrial Control Applications
  5.  4:3 & 16:19 formats available
  6. High Shock and Vibration Resistances
  7. Front Membrane Buttons for contolr and OSD Menus



LCD Features and Options


  1. 1RU rackmount LCD drawer with either 17", 19", 20" or 22” SAMSUNG LCD Panels
  2. Short Depth from 480mm (ideal 600mm deep racks) up to 650mm
  3. Wide Screen up to 22"
  4. Quad Display up to 20"
  5. Quad Display Widescreen up to 19"
  6. High Brightness up to 800 cd/m2
  7. High Resolution up to 1600 x 1200
  8. Touchscreen options
  9. Audio options
  10. NEMA 4 and IP65 Options
  11. AV Composite video option
  12. S-Video option
  13. BNC option
  14. DVI Video option
  15. Multi lingual on screen display menu
  16. 12, 24 and 48 volt DC power options

Screen Shots

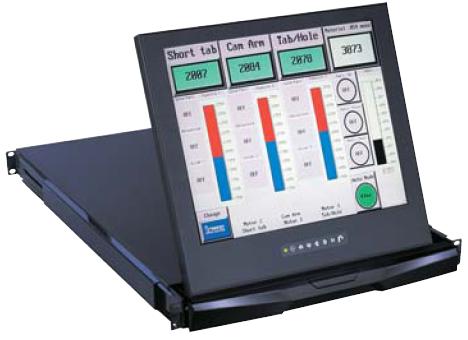

This is a picture of a 1RU 19 inch enhanced LCD Drawer

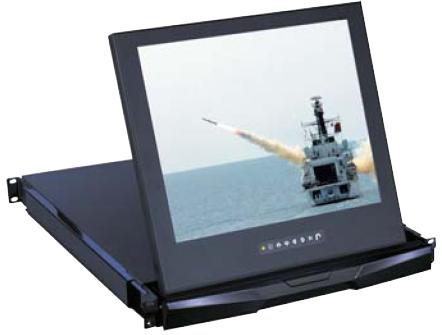

This is a picture of a 1RU 19 inch short depth military LCD Drawer

1RU 17" 19" Enhanced LCD Drawers

1RU 17" 19" Short Depth LCD Drawers

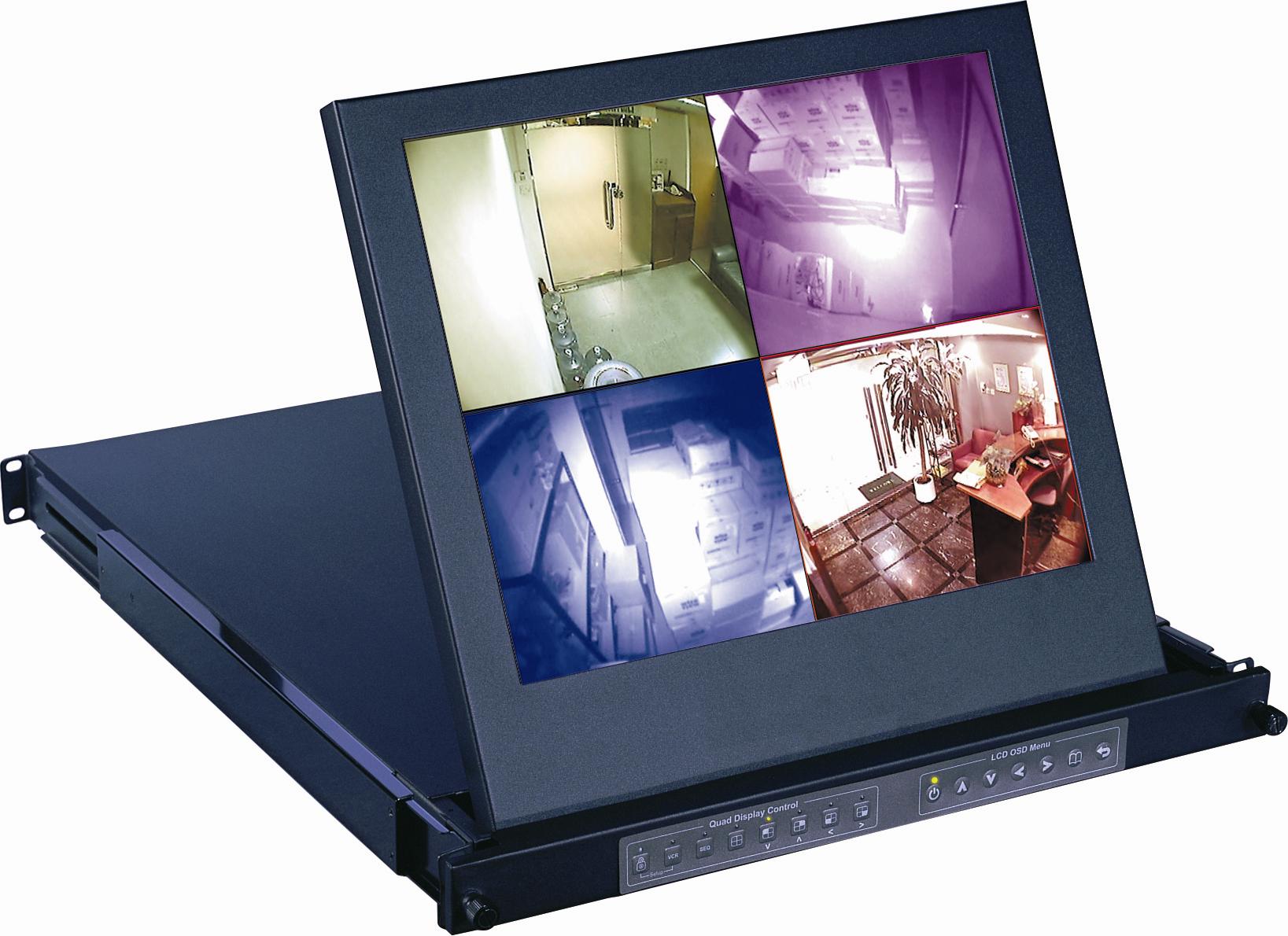

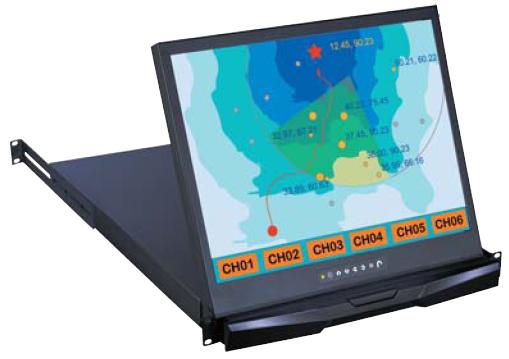

This is a picture of a 1RU 20 inch high resolution LCD Drawer

This is a picture of a 1RU 18

1RU 20" High Resolution LCD Drawer

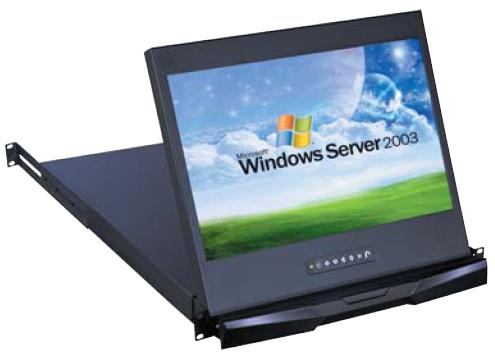

1RU 19" Widescreen LCD Drawer



This is a picture of a 1RU 19  This is a picture of a 1RU 20

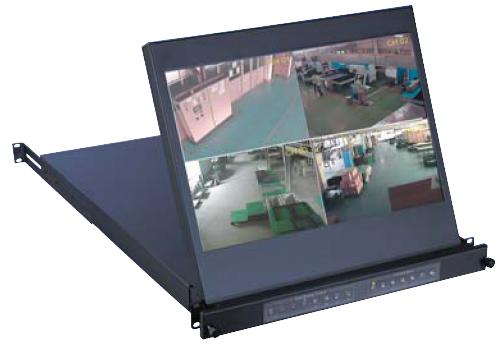

1RU 19" Wide Screen Quad Display LCD Drawer

1RU 17" 19" 20" Quad Display LCD Drawer



This is a picture of a 1RU 19

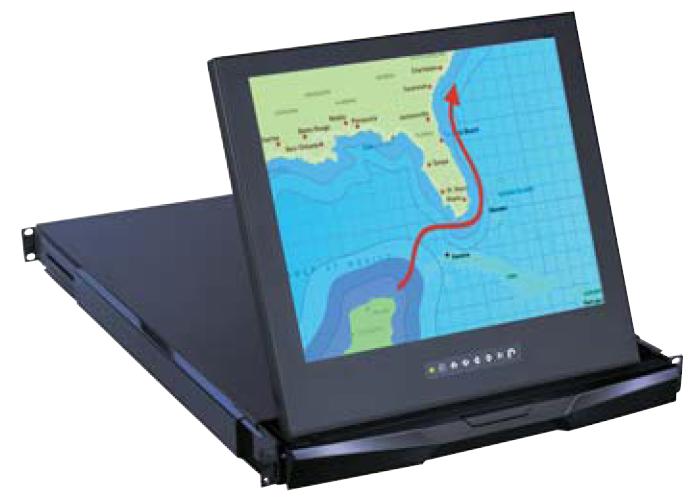

1RU 17" 19" High Brightness (800cd/m2) LCD Drawer



Specifications

Please see below specifications on 4:3, Wide Screen and High Brightness LCDs:

 4:3 Screen Size

 17"

 19"

20"



 Dispaly Type

 Active Matrix TFT
 Active Matrix TFT
 Active Matrix TFT

 Native Resolution

 1280 x 1024  1280 x 1024  1600 x 1200


 Brightness (cd/m2)

 300  300  300

 Contrast Ratio

 1000:1  1000:1
 800:1


 Viewing Angle (H x V)

 160 / 160
 160 / 160
 160 / 160


 Display Colour

 16.7M
 16.7M  16.7M

 Response Time

 Tr=1.3 / Tf=3.7  Tr=1.3 / Tf=3.7  Tr=1 / Tf=4

 Pixel Pitch (H x V)

 0.264 x 0.264  0.294 x 0.294  0.255 x 0.255



 Wide Screen



 19"



 22"

 Dispaly Type

   Active Matrix TFT    Active Matrix TFT

 Native Resolution

   1440 x 900
   1680 x 1050

 Brightness (cd/m2)

   300    300

 Contrast Ratio

   1000:1    1000:1

 Viewing Angle (H x V)

   160 / 160
   170 / 160

 Display Colour

   16.7M    16.7M

 Response Time

   Tr=1.3 / Tf=3.7
   Tr=3.6 / Tf=1.4

 Pixel Pitch (H x V)

   0.284 x 0.284    0.282 x 0.282



 High Brighntess

 17"

 19"

 20"

 22"

 Dispaly Type

 Active Matrix TFT  Active Matrix TFT
 Active Matrix TT
 Active Matrix TFT

 Native Resolution

 1280 x 1024  1280 x 1024  1440 x 900
 1680 x 1050

 Brightness (cd/m2)

 800  800  800  600

 Contrast Ratio

 800:1  800:1  900:1  900:1

 Viewing Angle (H x V)

 170 /160
 160 / 160
 160 / 160
 170 / 160

 Display Colour

 16.7M  16.7M  16.7M
 16.7M

 Response Time

 Tr=3.5 / Tf=1.5  Tr=1.3 / Tf=3.7  Tr=1.3 / Tf=3.7  Tr=3.6 / Tf=1.4

 Pixel Pitch (H x V)

 0.264 x 0.264  0.294 x 0.294  0.284 x 0.284  0.282 x 0.282

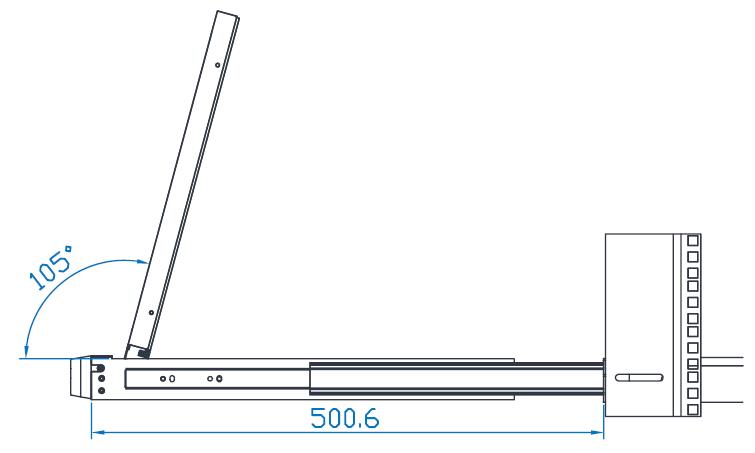

Opening Capability Diagrams (mm)

This is a picture of a 1RU 19

This is a picture of a 1RU 19

 1RU 17" 19" Enhanced LCD Drawers

 1RU 17" 19" Short Depth LCD Drawers

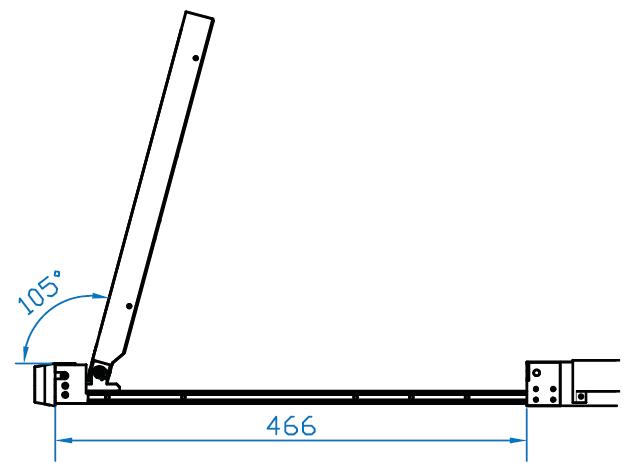

This is a picture of a 1RU 20 inch high resolution LCD Drawer diagram This is a picture of a 1RU 19 inch wide screen LCD Drawer diagram

 1RU 20" High Resolution LCD Drawer

 1RU 19" Widescreen LCD Drawer



This is a picture of a 1RU 19 inch widescreen LCD Drawer diagram

This is a picture of a 1RU 17

1RU 19" Wide Screen Quad Display LCD Drawer

 1RU 17" 19" Quad Display LCD Drawer

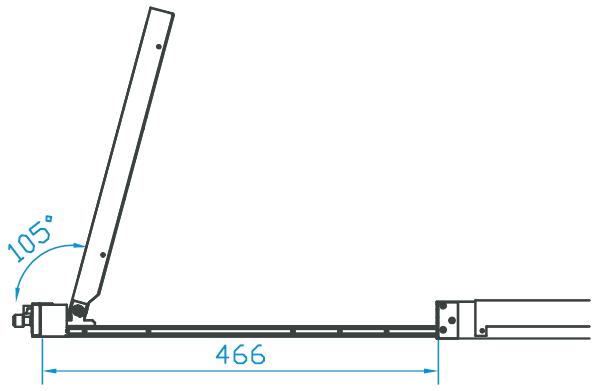

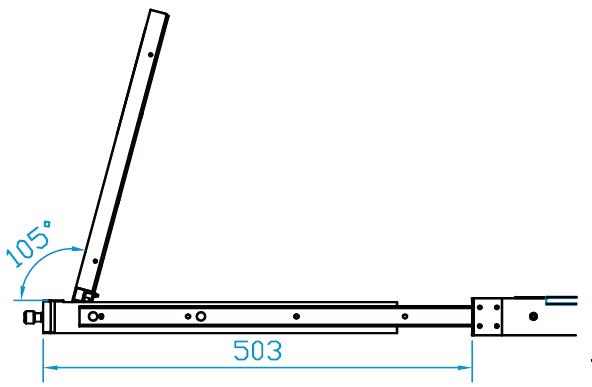

This is a picture of a 1RU 20 inch quad display LCD Drawer Diagram

This is a picture of a 1RU 19

 1RU 20" Quad Display LCD Drawer

 1RU 17" 19" High Brightness (800cd/m2) LCD Drawer
