1RU Single Slide Enhanced LCDs

This is a picture of a 1RU 19
  • 1RU 17" or 19" Samsung A Grade Screen
  • Cat6, PS/2 & USB KVM Connectivity
  • Single Person Installation kit available
  • IP Connectivity Options
  • Over IP Multi User Options & BIOS Control



LCD Drawer & KVM Benefits

  1. High Density Cat6 KVM with either 8, 16 or 32 ports in 1RU of rack space
  2. Cost effecient DB-15 KVM integration
  3. Singel or 'One Person' installation slides for easy, quick installation
  4. 104 key notebad keyboard with full numerical pad
  5. Mix PS/2, USB and SUN with Multi-Platfrom switch capability
  6. Secure remote usser access across HTTP/HTTPS


1RU LCD Drawer Features & Options

  1. 1RU rackmount drawer with either 17" or 19" SAMSUNG LCD
  2. Either PS/2 or USB input to the LCD drawer by cable selection
  3. Multiple keyboard language selections with eiether touchapad or trackball mouse
  4. Slide rails with fixed positions to prevent drawer movement when typing
  5. Multi lingual OSD (On Screen Display Menu)
  6. 12, 24, 48 volt DC power options


Options High Density Cat6 KVM integration

Over IP Group offers high density integrated 16 & 32 port Cat6 KVM switches, designed to provide added benefits to its users. The KVM switch range offers increased density, increased distances (40m) between switch and server, enhanced cable management and multiplatform capabilities over traditional KVM Switch platforms. Using either a PS/2or USB dongle at the server end of the installatin allows a user to cost effectively specify the switch to match the exact server configurations - multiplatform switches allow older or redundanct server to be migrated to servers with newer USB interfaces without replacing switch hardware.

Secure Remote or Four (4) Console KVM with optional IP Access

A second, third or forth user can work securely via a remote keyboard, monitor and mouse either across a Cat6 link of 300m with the building or across HTTP/HTTPS using 128 bit encryption secure IP access. This plug and play technology requires no software to be installed on the server or remote PC's but provides seamless secure access either over Cat6 cable or via IP and a web browser. Secure IP access allows the ultimate server control even to BIOS level of your servers.

IP KVM Screen ShotThis is a picture of a IP access web screen shot into a 32 port KVM

Notebook Keypad with a Touchpad Mouse

This is a picture of a 104 notebook keypad with a touchpad mouse

Notebook Keypad with a Trackball Mouse

This is a picture of a 104 notebook keypad with a touchball mouse



This is a picture of a 1RU 19
Type: 1RU 17" & 19" LCD Specifications
 Dimensions  17.4(W) x 25.6(D) x 1.73(H) in. / 442(W) x 650(D) x 44(H) mm
 Net Weights  16 kg / 35 lbs                      17 kg / 37 lbs
HTTP / HTTPS
 128 bit encryption security
Screen Qualitiy This is a picture of a SAMSUNG logo

Samsung A Grade Panel
Multiple Users
 Multiple User Access with user or adminstrator rights
Designed for
This is a picture of IBM, HP, Dell & SUN's logos
Virtual Media
 Virtual Media Support Via:
  - Floppy Disk
  - CD Rom Image
  - Drive Redirection
  - USB Mass Storage
Options

  - AV Input
  - DVI Input
  - BNC Input
  - DC Power Input



Telnet
 Telnet Serial Connection enabled
Power Input
 100 ~ 240V AC
 IEC C14 10A Socket with on/off switch
Serial
 DB-15 Serial Connection on rear panel
Network Protocol  HTTP, SNMP, DHCP, BTelnet, SMTP
USB
 Mini USB on rear panel
Firmware Upgrade  Network Upgrade
  Serial Upgrade (for recovery use)
System Security
 128 bit enrcyption security
Event Log
 On board logging, with NFS, SMTP & SNMP logging available
Approvals

 Manufacturing is ISO14001 and ISO9001 Certified

Display Type
 Active Matrix TFT
Native Resolution
 1280 x 1024
Brightness (cd/m2)
 300
Contrast Ratio
 1000 : 1
Viewing anlge
Horizontal / Vertical
 160 / 160
Display Colour
 16,200,000 colours
Response time
 Tr=2 / Tf=6
Pixel Pitch
 17": 0.264 x 0.264                   19": 0.297 x 0.297
 Warranty  Two years

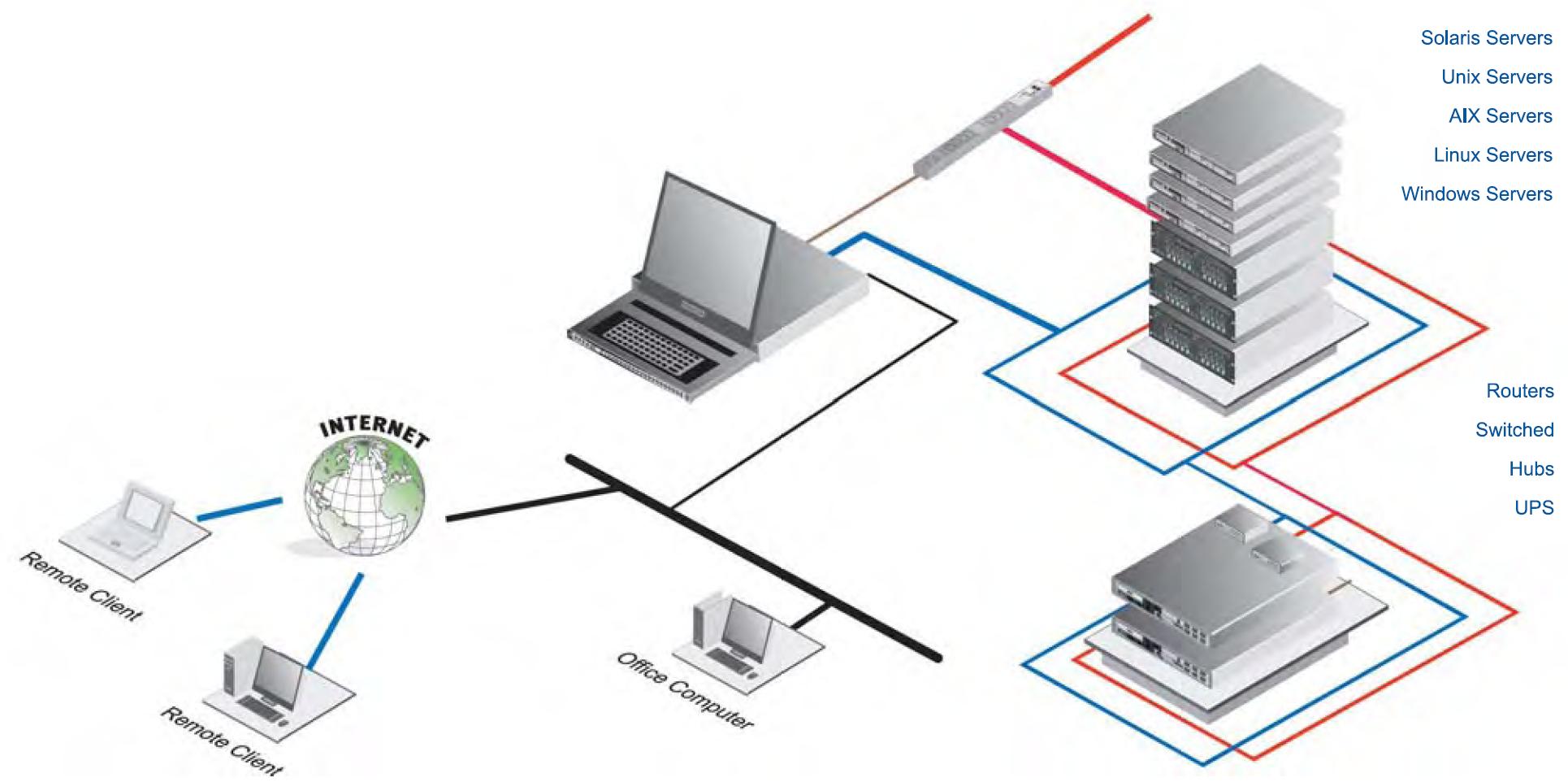

Typography of a over IP access users
This is a picture of a over IP acces typography layout of users for KVMs

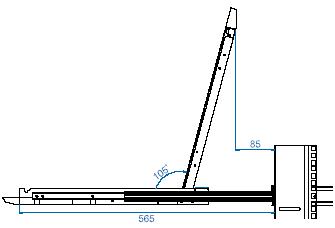

Opening Capability Diagram (mm)

This is a picture of a 1RU 19 LCD Diagram

Exploded View
This is a picture of an exploded view of a 1RU 19
