40kW & 74kW In Row Cooling

Over IP Group has innovative and highly flexible cooling system for high density server racks. With its 40kW & 74kW In Row Cooling Systems both in Chilled Water, DX & Water (Gylcol), the system can be placed next to your existing server racks.

This is a  picture of a 40kw in row cooling rack with chilled water
  • In row cooling

  • 40kW & 74kW options

  • Highest Efficiency, 40% less than competitors units

  • Close Coupled

  • Superior Acoustic Performance

  • Modular and scalable solution

  • ECM Motors

  • Chilled Water, DX and Water (Glycol) cooled options

  • Programmable Warning Zones



Features & Benefits

  1. By placing these units in the server row, they are closely coupled to the heat source providing efficient operation.
  2. Variable fan speed is controlled by the amount of cooling required by the IT equipment resulting in energy efficiency.
  3. This solution is scalable enabling you to add cooling as demand increases the inlet temperature.
  4. Take into to consideration the cable management which is quite important to assure the right balance between cable connections and air distribution.



Customisation

  1. All of our products can be customised to meet your unique requirements, such as modifying footprints, match existing controls, assemble in place, quick ship & custom colours
  2. Made from the highest quality products
  3. Manufactured in the USA
  4. All of our products include a full parts and labour warranty
  5. Extended warranties and/or maintenance programs are also available

This is a   picture of a 40kw in row cooling rack with chilled water

 Cooling Options

 40kW Chilled Water / DX

 74kW Chilled Water / DX

 Capacity, Tons

 12 tons  20 tons

 Airflow

 6,150 CFM  10,400 CFM

 Power Consumption

 0.7kW  1.17kW

 Filter Size

 4" / 100mm  4" / 100mm

 Variable Speed Fans

 Yes  Yes

 Web Monitoring

 Yes (multiple zones of air,
 water, power, temperature, etc.
 Yes (multiple zones of air,
 water, power, temperature, etc.

 Dimensions (H x W X D)

 2300mm x 600mm x 1070mm  2300mm x 900mm x 1070mm

 Fans

 3 (each running at 60% load)  3 (each running at 60% load)

 Fan Redundancy

 N + 1 (if 1 fan fails, the other
 2 fans ramp up to 90% load)
 N + 1 (if 1 fan fails, the other
 2 fans ramp up to 90% load)

 Warranty

 2 years parts & 1 year labour  2 years parts & 1 year labour

 Lead Time

 10 weeks (if not in stock)  10 weeks (if not in stock)

 Voltage

 240V or 415V AC  240V or 415V AC



Capacity Data Based on 7.22° C Entering Water and 29.44° C Entering Air

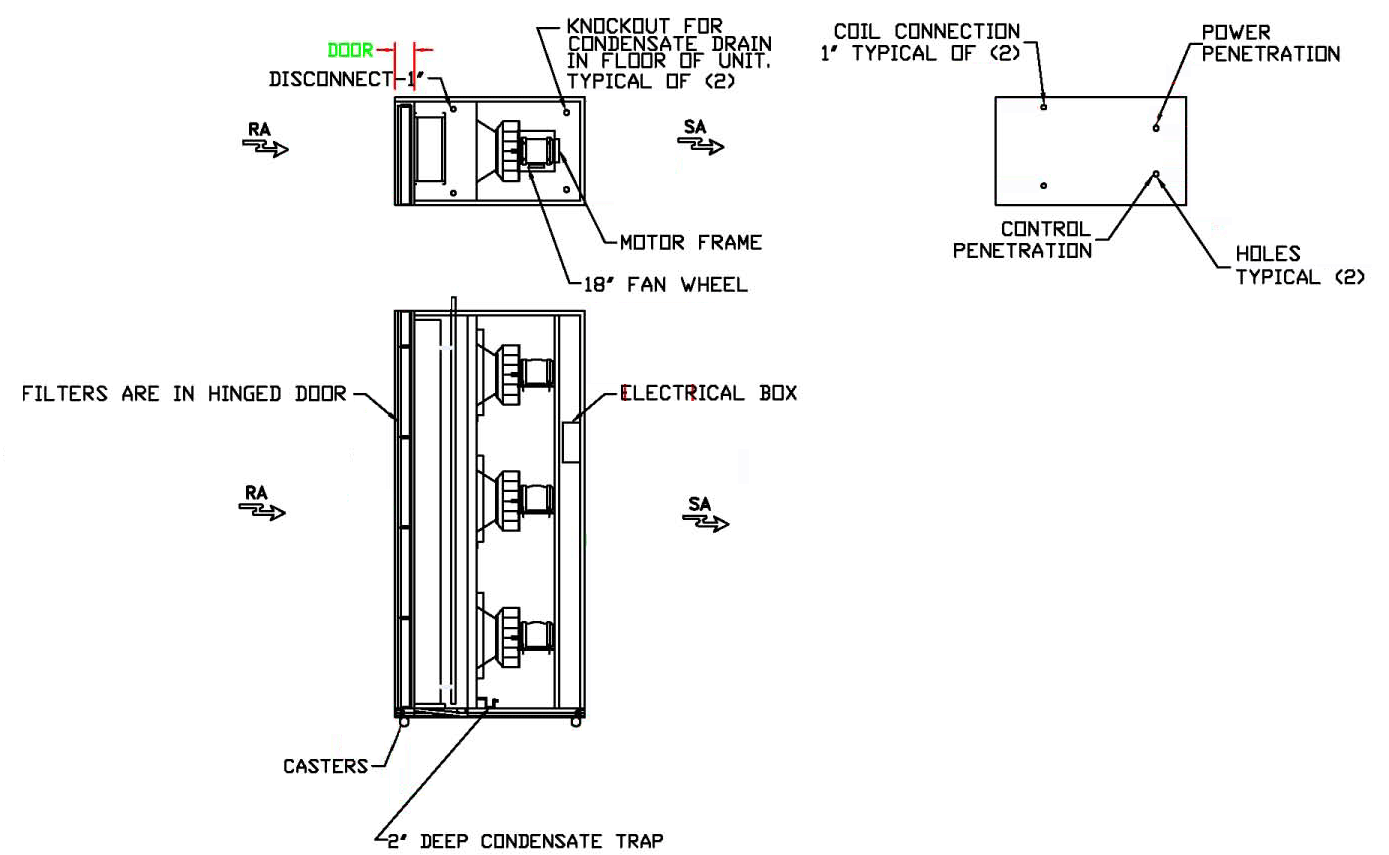

This is a picture of multiple views of our 40kW in row cooling for server racks
