CREMS 12 Port Monitoring Device EI

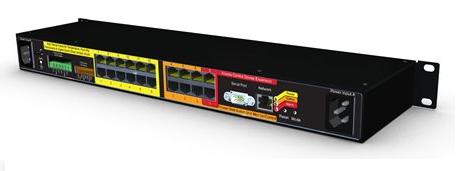

This is a picture of a 12 port CREMS
  • Web enabled HTTP/HTTPS
  • 12 x Digital Inputs (Modular)
  • 4 x Digital Outputs
  • 2 x Access Control Ports
  • 3 x Cascading Ports to monitor 4 x CREMS


The UT-E1 is a network attached device, designed to provide a computer room or multi rack level power, environmental monitoring and physical access control, using a single IP address. The exciting development to this product is the ability to extend the functionality of the base unit by adding external expansion devices, allowing a further increase in the supported number of sensor inputs, power monitoring inputs and controlled relay outputs, allowing greater flexibility.

 Chassis

  Supplied as a 19” rack mountable unit, housed in a 1U metal case
  Dual power input redundancy

 RJ45 Ports

 12 x input sensor channels for temperature sensors, humidity sensors, voltage free contacts and 0-10VDC analogue input
 6 x Ports for PDUs / HE-Amps, monitoring amps, volts, kVA, kWHr, power factor and frequency
 1 x TCP/IP, 10/100Mbps Ethernet network
 2 x Normally open / normally closed relay contacts with a 240VAC voltage switching contact rating
 2 x Normally open / normally closed relay contacts with a low voltage switching 50VDC/AC contact rating
 1 x Expansion Port to cascade to the CREMS 18 port Expansion Device

 Connectivity

 Access provided through SNMP, HTTP, HTTPS, Telnet
 Built in Email functionality
 Built in SNMP functionality for BMS and NMS integration

 1 x IP Address solution

When connecting the expansion device you group under one web interface:
   12 x Digital Inputs
   24 x PDUs or HE-Amp Ports
   4 x Digital Outputs
   2 x Access Control Keypads

 Virtual Ports

 16 x logic boolean channels for programmable logic control through if / when / and / or statements

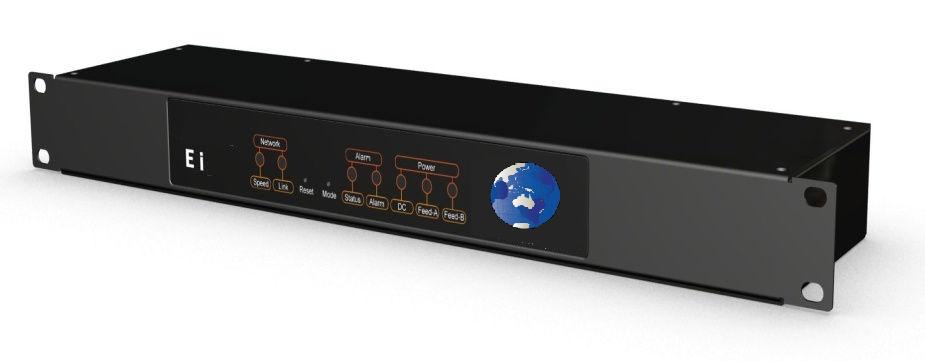

This is a picture of 12 port CREMS front view with LCD

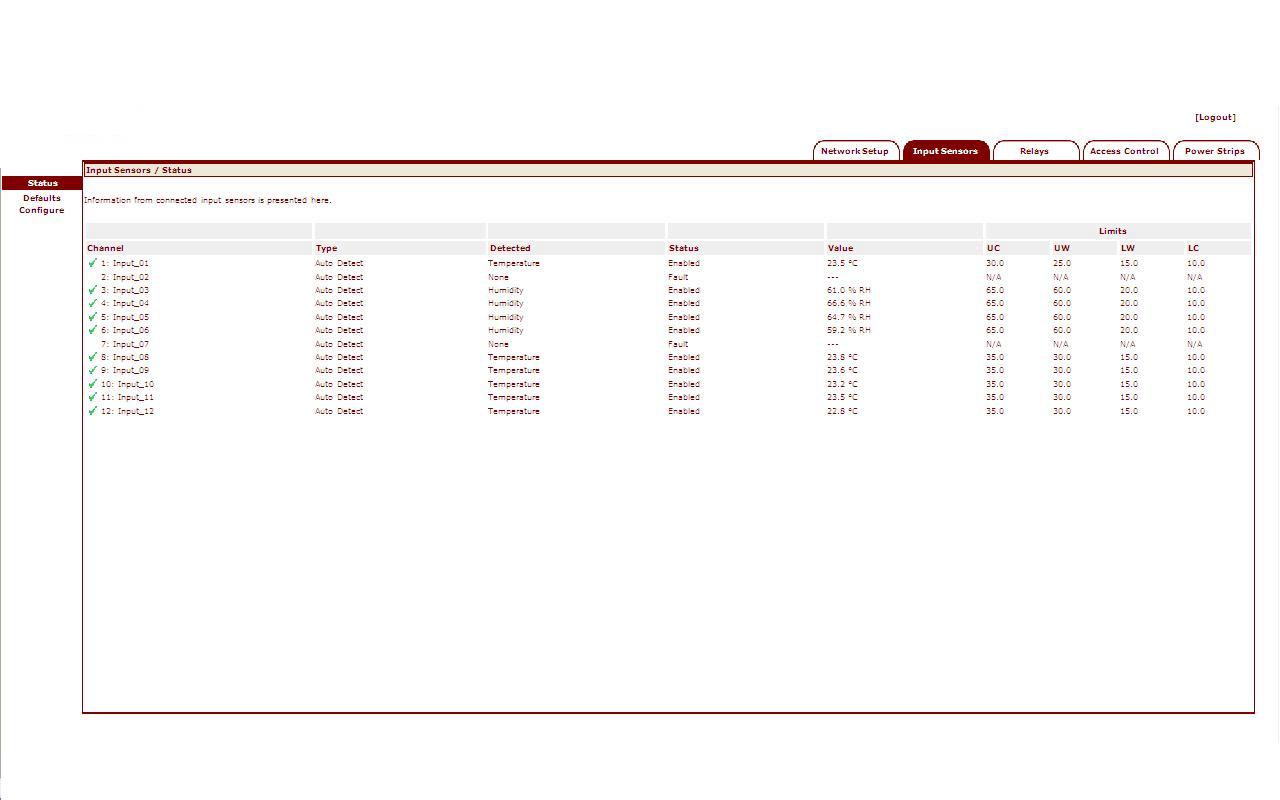

Web Browser Screen Shot of Digital Inputs

This is a picture of digital inputs on a web browser

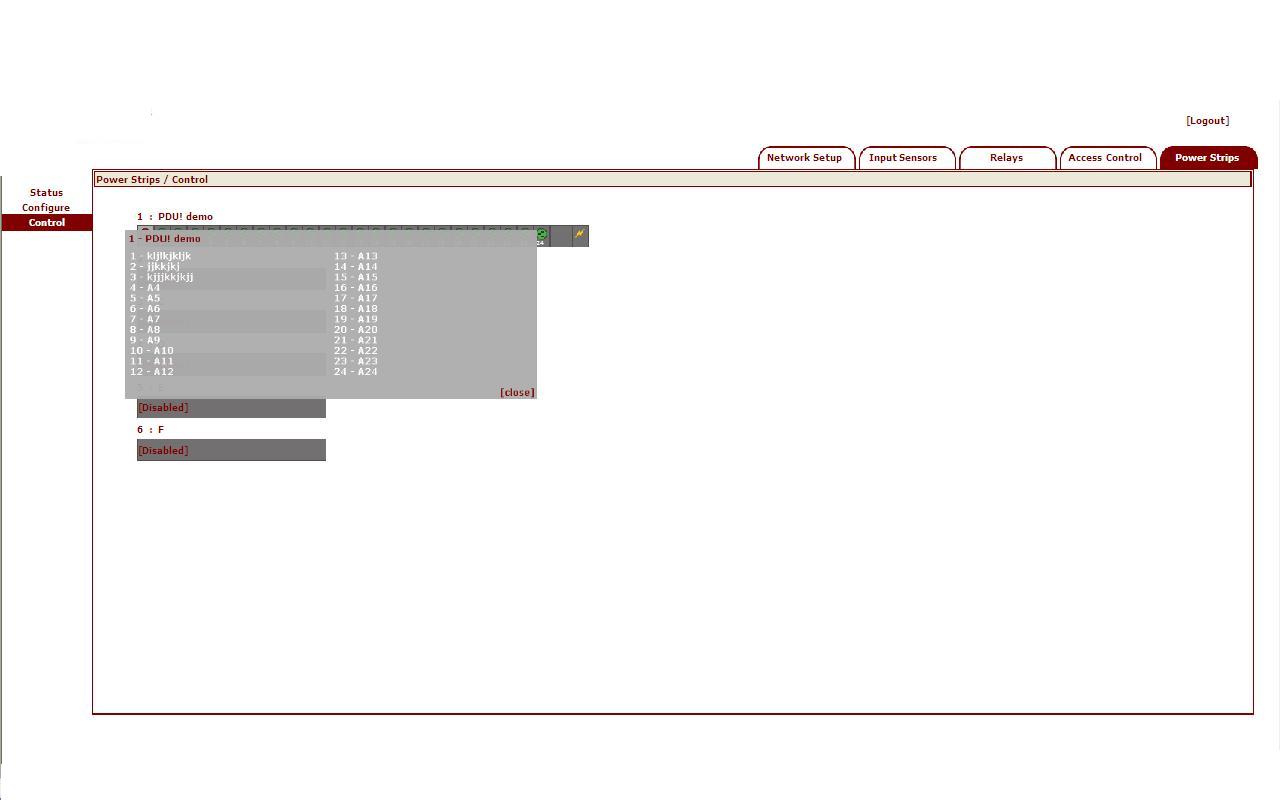

Web Browser Screen Shot of PDU Control

This is a picture of PDU control via a web browser

 Internal PSU

Dual

 Supports HE-Amp

This is a picture of a green tick

 Supporting no. of PDUs
 (Monitoring volts, amps, kVA, kWHr, PF & Hz)

6 (18 through expansion port)

 Internal Relays

4
 Expansion Relays 2 (on I/P Expansion) +12 (on O/P Expansion)

 Internal Inputs (Temperature/Humidity/Contact)

12

 Internal Access Keypad

2

 Internal Access Serial Smart Card, e.g. HID

2

 Physical Dimensions in mm (H x W x D)

43mm x 483mm x 113mm

 Boolean Logic

This is a picture of a green tick

 NAND Flash Filing System (for Events Audit Log)

This is a picture of a green tick

 Web Interface

This is a picture of a green tick

 SNMP Support

This is a picture of a green tick

 Email Alarms

This is a picture of a green tick

 Syslog

This is a picture of a green tick
 Trap Log to NAND Internal File System This is a picture of a green tick
 24 Hour Data Log in RAM This is a picture of a green tick
 Telnet Control This is a picture of a green tick
 PPP Remote Network Access This is a picture of a green tick

 TFTP Upgradeable Firmware

This is a picture of a green tick

 LDAP Support

This is a picture of a green tick

 Real Time Clock

This is a picture of a green tick

 SNTP (Time Protocol)

This is a picture of a green tick
 Input Power 100 - 240V AC
 Input Connector IEC C14 Input
 Power Consumption Max 40W
 Additional Information Isolated Suppaly and Chassis Ground
 Power Supply Options 48V DC Power Input
 Operating Temperature 0°C to 45°C, -15°C to 50°C
(Optional extended range)
 Storage Temperature -10°C to 70°C, -40°C to 70°C
(Optional Extended Range)
 Operating Humidity 15% to 85% RH
 Storage Humidity 5% to 90% RH
 MTBF > 100,000 Hrs
 Temperature Range
0°C to 60°C
 Temperature Monitoring Accuracy
± 5% Standard Transducer @ 20°C
 Temperature Hystersis
Programmable 0.1°C to 9.9°C in 0.1
increments
 Humidity Monitoring Range
30% to 90% Relative Humidity
 Humidity Monitoring Range ± 5% RH @ 25°C
 Humidity Hystersis
Programmable 0.1%RH - 9.9% in 0.1 increments
RH Analogue Resolution
 Analogue Resolution 12 Bit A/D
 Additional Information
Inputs are not isolated. Auto
detection of supported sensors
 Power Parameters Monitored
 Volts, Amps, total kVA, total kWh,
total Power Factor and Frequency
 Voltage Monitoring Range 0 V to 500 V
 Voltage Monitoring Accuracy
± 2%
 kWh Monitoring Range 0 kWh to 429496729 kWh
 kVA Monitoring Range 0 kWh to 429496729 kVA
 Current Monitoring Range 0 A to 65 A
 Current Monitoring Accuracy
± 2%
 Output Connectors WeidMuller
 Output Modes Normally Open, Normally Closed
 Maximum Switching
 48 V at 1 A (Resistive load)
 Additional Information Outputs 1 and 2 offer a 12+ V DC
supply fused at 1amp
