Inline Power Meter

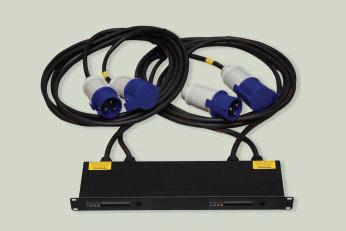

This is a picture of an inlince power meter link box with dual 32A cables
  • Connectivity via RS232 or RS485 Modbus
  • 16A, 32A Single Phase or 64A Three Phase
  • 2 x power cable inputs
  • 2 x power cable outputs
  • Each Phase is measured indpendently


Specifically designed for devices requiring one or more direct power feeds. Ideal for large servers, disk storage arrays,
blade server enclosures and network switches. The devices can be free standing or installed in server cabinets for new build and retrofit fit applications. As an Integral part of the Over IP Group integrated solution, the Inline Power Meter Link Box accurately measures critical power and energy information via secure polling and real time SNMP.

  1. Specifically designed for devices requiring one or more direct power feeds
  2.

  3. Single and three phase solutions
  4.

  5. Three Phase In-Line units provide 3 serial feeds. Each phase is measured independently
  6.

  7. Single or dual fed
  8.

  9. Integrated, scalable & modular solution
  10.

  11. Economical & cost effective
  12.

  13. Range of socket outlet types
  14.

  15. Up to 24 socket outlets
  16.

  17. 10A, 16A & 32A load rating options
  18.

  19. 1RU, 2RU or 3RU 19”, ETSI horizontal rack mounting
  20.

  21. Available in 16A and 32A Single Phase & in 64A Three Phase options
  22.

  23. Single or multi-site applications
  24.

  25. Fully featured management platform
  26.

  27. Set alarm thresholds to provide management & trend analysis reporting
  28.

  29. Single and three phase solutions
  30.

  31. Local LCD display of voltage, current and kWh
  32.

  33. CE Approved
  34.

  35. Remote current, voltage and kWh monitoring
  36.

  37. 19”, ETSI horizontal rack mounting
  38.

  39. Easy to use
  40.

  41. Simple to install
  42.

  43. Secure real time SNMP and polling

This is a picture of an inlince power meter link box with dual 32A cables

Parameters

Inline Power Meter

Connectiviy

EIA RS232 or RS485

Supports Enterprise Device Manager

This is a picture of a green tick

Rated Voltage

230V, AC Nominal Single Phase
415V, AC Nominal Three Phase

Rated Current

Up to 32A, Single Phase per input
Up to 64A, Three Phase per input
Operating Temperature
-10oC to +85oC

Measuring Accuracy

+ / - 2%

Local Display

This is a picture of a green tick

Displaying

Current, Voltage, KWh

Display Resolution

1 Volt, 0.01 Amp, 0.1KWh

Input Plugs / Cable Lengths

IEC 309, 2 metres

Output Plugs / Cale Lengths

IEC 309, 3 metres

Physical Dimensions

1RU, 19" / ETSI (Single Phase)
2RU, 19" / ETSI (Three Phase)

Material

Metal

Colour

Black

Safety Standards

EN 60950-2000, EN 61010-1
Single Phase Models Single Supply 16A

Single Supply 32A

Dual Supply 16A

Dual Supply 32A

Three Phase Models

Single Supply 32A


Single Supply 64A

If you do require a custom inline power meter to meet dual 32A or 64A three phase applications, please contact us for furhter details on your project.

Combined with Enterprise Device Manager, the platform can be used to remotely via IP monitor, control, generate out of norm and critical alarms, management reports and trend analysis, providing truly integrated and tailored solutions, to meet customer specific requirements for power monitoring and AM&T for energy management.This is a picture of an inline power meter link box with dual 32A cables
