Air Conditioning Units for Racks
Specifically developed for mounting on the wall or door of electronic enclosures, the air conditioners cover a cooling capacity range from 330W to 4000W.
Specifically developed for mounting on the wall or door of electronic enclosures, the air conditioners cover a cooling capacity range from 330W to 4000W. Common to all models is the “Selfcleaning” condenser coil which remove the necessity of the air filter, avoiding the ordinary maintenance. Most models are equipped with Condesate Dissipator (from EVE11). The standard control is electromechanical, and as option an electronic one (EBB).
|
|
No filter All models have the heat exchanger surfaces specifically designed to prevent clogging by particles and fibers in the ambient air. Therefore, they remain very efficient even in the worst ambient conditions and filters are eliminated.
|
|
|
Condensate dissipator Units equipped with a condensate dissipator, a device that solves the problems of condensate management and evacuation.
|
|
|
Environment safety In all stages, from the drawing board to the creation of our products, EEC safety regulations and environmental resources are respected, using ecological gases and recyclable materials.
|
|
|
EBB This is a device which allows electronic management of the main conditioner functions.
|
|
|
INOX The units can be delivered with casing in AISI 304 stainless steel.
|
|
|
Colour The units can be delivered with other RAL colours.
|
2000W Side Mount Air Conditioner
4000W Side Mount Air Conditioner
|
|
OIPEVE0300220 |
OIPEVE0400220 |
OIPEVE0800220 |
OIPEVE1008220 |
OIPEVE1100220 |
|
Voltage / Phase / Frequency |
V-ph-Hz |
230-1-50/60 |
230-1-50/60 | 230-1-50/60 | 230-1-50/60 | 230-1-50/60 |
Cooling capacity L35L35 DIN 3168 |
W |
330 | 500 | 850 | 900 | 1050 |
Cooling capacity L35L50 DIN 3168 |
W |
270 | 410 | 620 | 760 | 840 |
Height / Width / Depth |
mm |
436x320x180 |
634x308x221 | 634x308x221 | 784x322x220 | 934x406x244 |
Maximum Running Current |
A |
1,4 | 2 | 2,8 | 3 | 2,8 |
Starting Current |
A |
5 | 15 | 15 | 14,5 | 16 |
Power absorbed L35L50 DIN 3168 |
W |
240 | 324 | 415 | 570 | 506 |
Side cabinet fan flow, free air |
m3/hr |
164 | 290 | 290 | 330 | 570 |
Side cabinet temperature limits |
oC |
25 - 45 | 25 - 45 | 25 - 45 | 25 - 45 | 25 - 45 |
Side ambient temperature limits |
oC |
20 - 55 | 20 - 55 | 20 - 55 | 20 - 55 | 20 - 55 |
Side cabinet protection degree |
IP |
54 | 54 | 54 | 54 | 54 |
Noise Level |
db(A) |
60 | 65 | 65 | 65 | 65 |
Weight |
kg |
17 | 23 | 26 | 29 | 42 |
|
|
OIPEVE1400220 |
OIPEVE2000220 |
OIPEVE20U0220 |
OIPEVE2800220 |
OIPEVE4100220 |
|
Voltage / Phase / Frequency |
V-ph-Hz |
230-1-50/60 |
230-1-50/60 | 230-1-50/60 | 230-1-50/60 | 230-1-50/60 |
Cooling capacity L35L35 DIN 3168 |
W |
1400 | 2000 | 2000 | 2700 | 4000 |
Cooling capacity L35L50 DIN 3168 |
W |
1170 | 1700 | 1700 | 2300 | 2900 |
Height / Width / Depth |
mm |
934x406x244 |
934x406x244 | 1004x406x244 | 1234x508x375 | 1234x508x375 |
Maximum Running Current |
A |
5 | 5 | 6,2 | 9 | 9,2 |
Starting Current |
A |
17 | 20 | 22 | 38 | 46,5 |
Power absorbed L35L50 DIN 3168 |
W |
939 | 1146 | 1200 | 1450 | 1800 |
Side cabinet fan flow, free air |
m3/hr |
575 | 860 | 575 | 860 | 1450 |
Side cabinet temperature limits |
oC |
25 - 45 | 25 - 45 | 25 - 45 | 25 - 45 | 25 - 45 |
Side ambient temperature limits |
oC |
20 - 55 | 20 - 55 | 20 - 55 | 20 - 55 | 20 - 55 |
Side cabinet protection degree |
IP |
54 | 54 | 54 | 54 | 54 |
Noise Level |
db(A) |
65 | 65 | 65 | 70 | 75 |
Weight |
kg |
42 | 44 | 44 | 86 | 81 |
Note: Specifications may change without notification
Cooling Capacity & Perforamce against inside cabinet temperature and ambient temperature
|
|
|

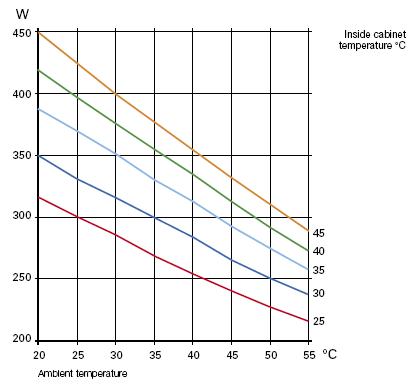

OIPEVE0300220 Air Conditioner Graph |

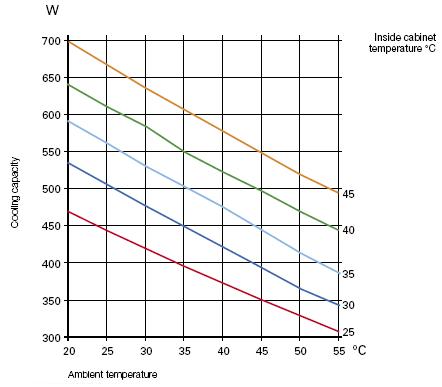

OIPEVE0400220 Air Conditioner Graph |
|
|
|

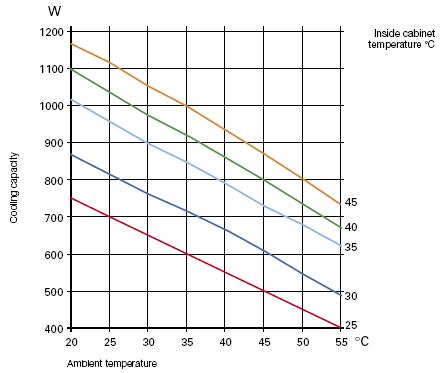

OIPEVE0800220 Air Conditioner Graph |

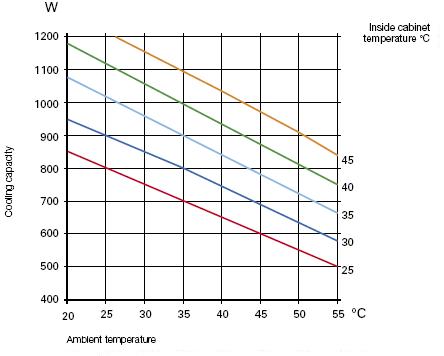

OIPEVE1000220 Air Conditioner Graph |
|
|
|

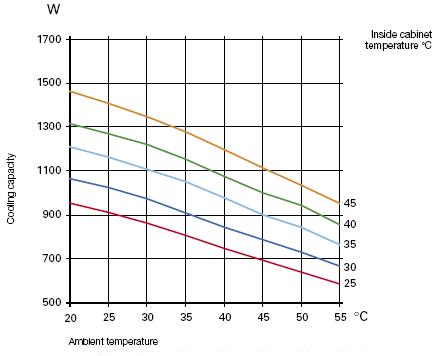

OIPEVE1100220 Air Conditioner Graph |

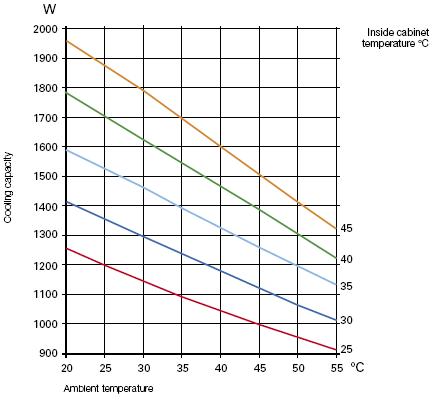

OIPEVE1400220 Air Conditioner Graph |
|
|
|

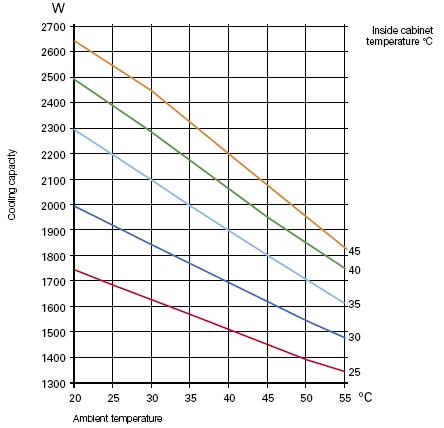

OIPEVE2000220 Air Conditioner Graph |

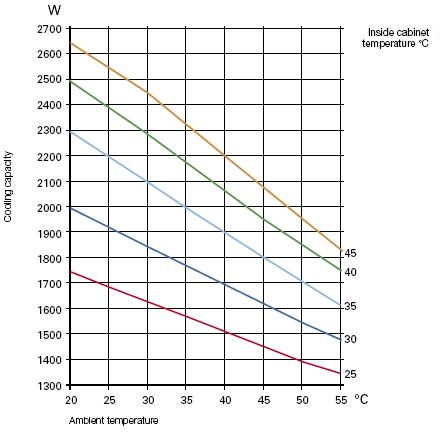

OIPEVE20U0220 Air Conditioner Graph |
|
|
|

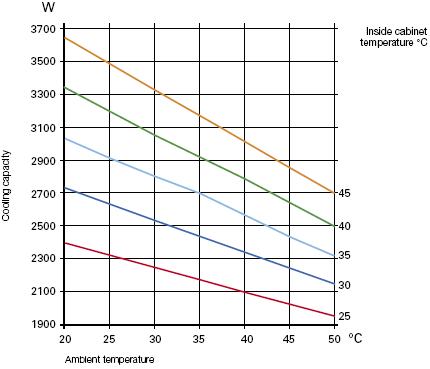

OIPEVE2800220 Air Conditioner Graph |

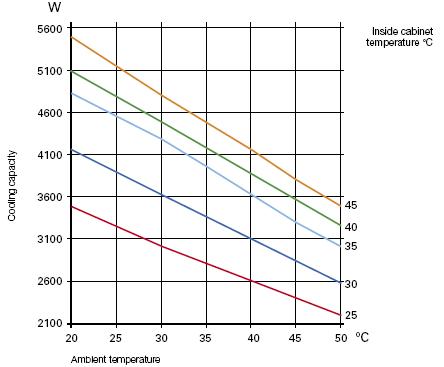

OIPEVE4100220 Air Conditioner Graph |
