8 way Switched PDU with individual socket monitoring

Switched Power Control via IP with remote monitoring & management, including remote reboot to connected servers and network equipment for low to mid density applications.

This is a picture of a 8 way switched pdu with individual amp monitoring
  • Web enabled HTTP/HTTPS
  • Individual Socket Monitoring
  • 8 x IEC C13 10A Sockets
  • Amp, Volts, Hz Monitoring
  • 1 x Temperature & Humidiy Sensor
  • 2 x Digital Dry Contact Inputs



Features & Benefits

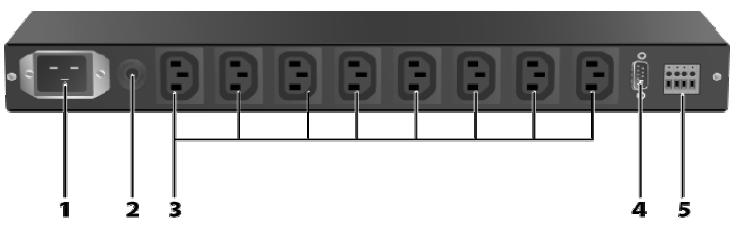

Back View of the 8 way Switched PDU

This is a picture of a 8 way switched pdu with individual socket amp monitoring back shot

  1. Connect to a power outlet.
  2. Breaker - Prevents excessive current flow to protect the system.
  3. Connect a device to each power outlet to supply power to it.
  4. Connect dry contact UPS that can be remotely managed through network card.
  5. Connect up to 4 digital outputs that are normally open or normally closed

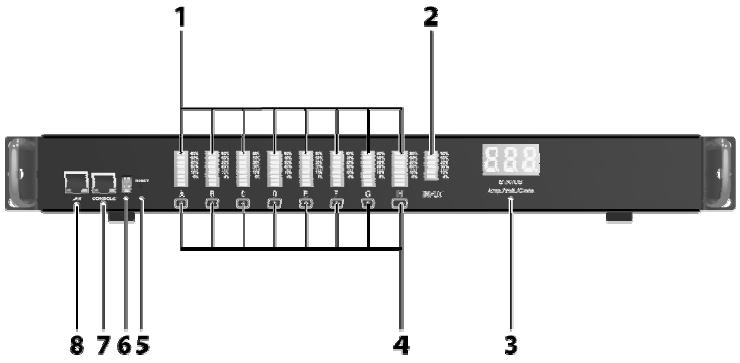

Front View of the 8 way Switched PDU

This is a picture of a 8 way switched pdu with individual socket amp monitoring front shot
  1. Displays output current, power status, and remote control status for each power outlet A through H.
  2. Displays percentage of input power consumed.
  3. Displays input current, voltage, frequency, and error code.
  4. Enables you to manually control power & enable remote control configuration for each power outlet A to H.
  5. Enables you to reset the iPoMan 8000 in case the system locks up.
  6. Sets the mode of operation for the iPoMan 8000. S1 off, S2 off: Normal operation (default mode)
  7. Enables you to configure the iPoMan 8000 using the serial port. You can connect an optional EMD to this port.
  8. Enables you to configure the iPoMan 8000 through a LAN or WAN.

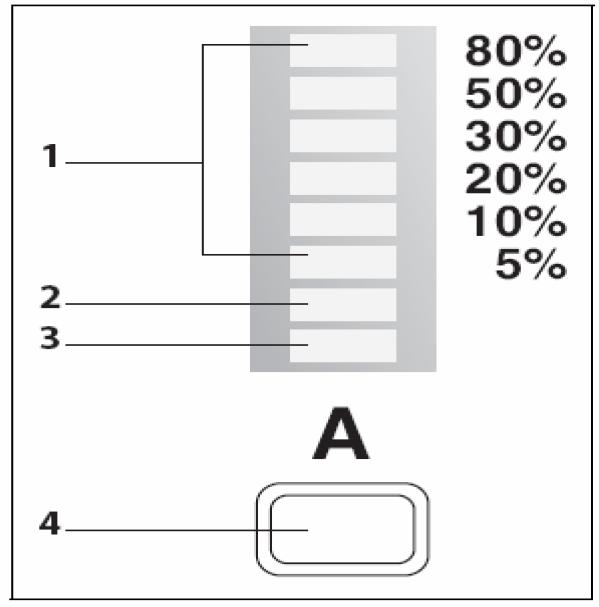

Local LCDs per socket with manual local on/off control

This is a picture of a 8 way switched pdu front lcd with manual control button
  1. Current Level Indication: Displays the amount of current being drawn by the connected output device through the oower outlet.
  2. Outlet Power Indicator: Displays the outlet power status.
    1.
      • Grey: power off
      • Green: power on
  3. Remote Control Indicator: Displays the remote control status of each outlet.
    1.
      • Grey: remote control is enabled
      • Red: remote control is disabled
  4. Control Button: Allows manual control of each power outlet locally on site. Press repeatedly to switch between remote control and power on/off mode. See user manual for more control functionality

  1. Individual fused power outlet circuit protection and a single circuit input circuit breaker o Individual load metering for each power outlet socket as well as total load
  2. Has built in JAVA data logging & graphical display engine for all power circuits, and environmental monitoring
  3. Has a real time temperature & humidity sensor monitoring via a single IP address
  4. 2 x field dry contact alarm/status inputs for additional monitoring via single IP address
  5. Programmable Logic Control (PLC) to bring the power control, environmental control, input control & output control all together for true management capability
  6. Individual outlet control (with individual password protection)
  7. Individual Fused Sockets to protect each individual socket from one another

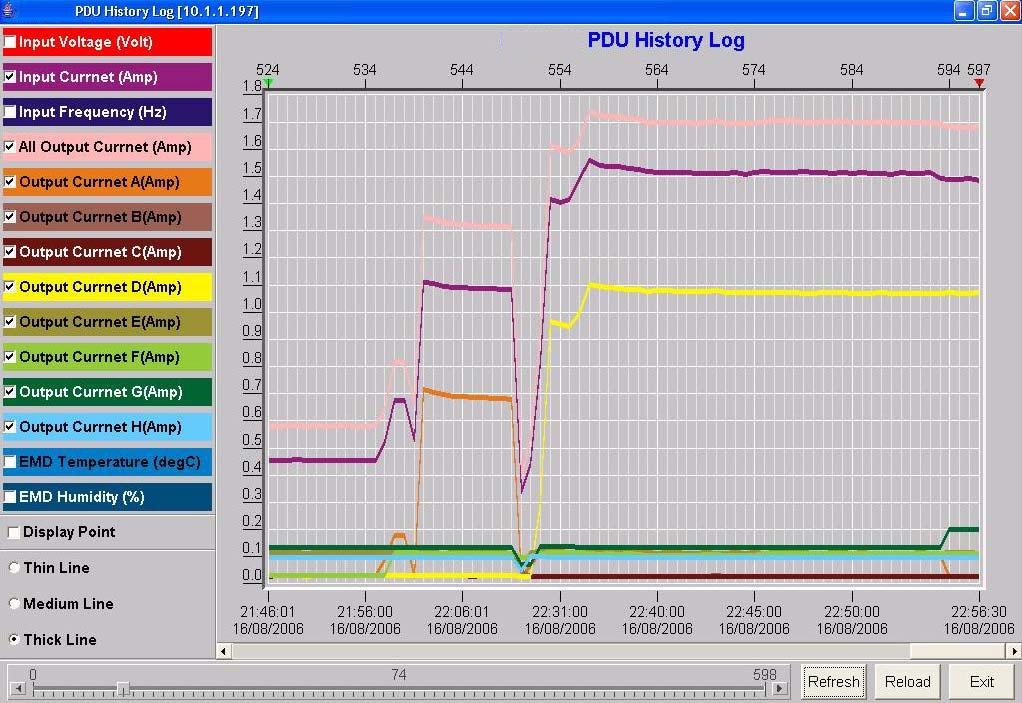

Java Screen Shot

This is a picture of a java history log for the 8 way switched pdu with individual amp socket monitoring

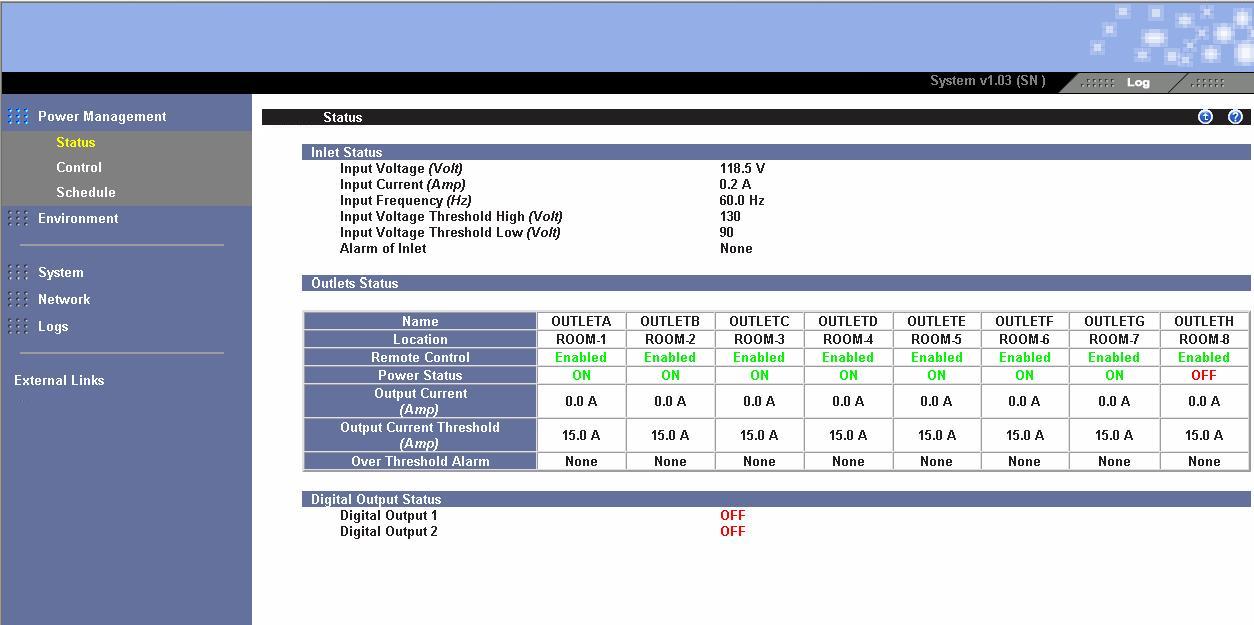

Web Screen Shot with individual outlet readings

This is a picture of a web screen shot for the 8 way switched pdu with individual socket amp monitoring

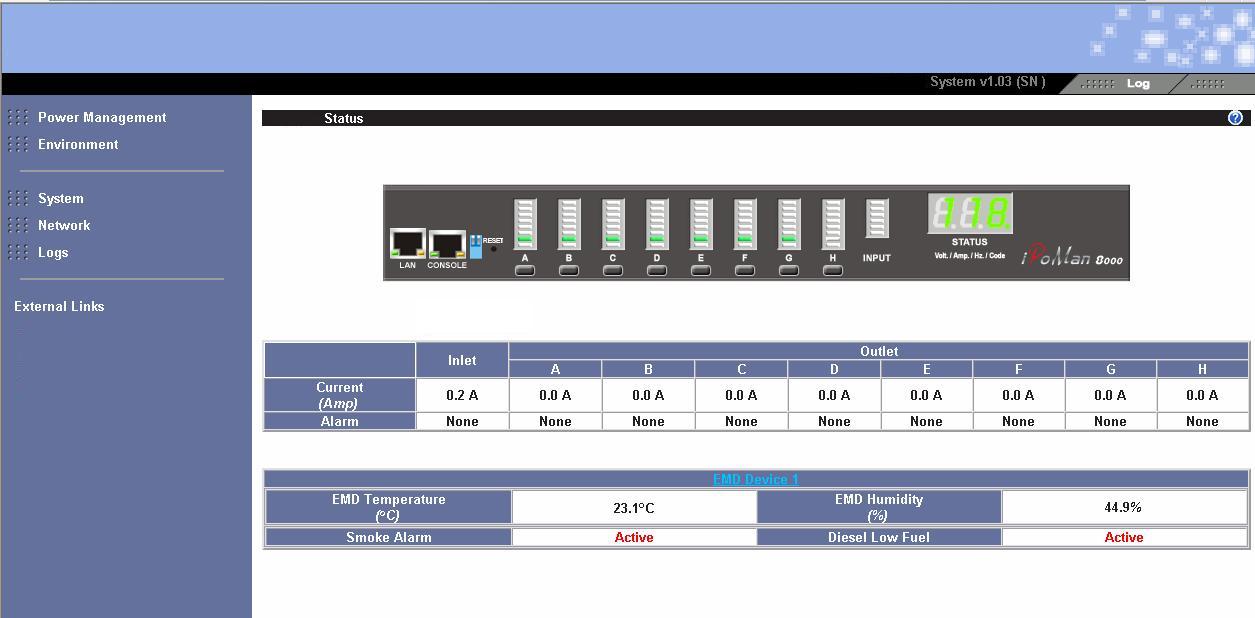

Web Screen Shot with graphical display & temperature/humidity monitoring

This is a picture of a web screen shot for the 8 way switched pdu with individual socket amp monitoring



Type: 8 way Switched PDU with Individual Socket Monitoring

Dimensions

1U Rack: 436(w) x 270(d) x44(h) mm or 17(w) x10.6(d) x1.7(h) inches

Weight

approx. 3.8kg or 8.4lbs
Models
 110V & 220V
Network Interface
 Ethernet 10/100 Mbps RJ45
Input Power Interface
Socket
 One Channel IEC C20
Voltage
 ( 110V Model ) 100~125 VAC, 50/60 Hz
( 220V Model ) 200~250 VAC, 50/60 Hz
Rating
 ( 110V Model ) 15Amps
( 220V Model ) 15Amps
Output Power Interface
Socket
 ( 110V Model ) 8 Channels NEMA 5-15R
( 220V Model ) 8 Channels IEC C13
Voltage
 ( 110V Model ) 100~125 VAC, 50 /60 Hz
( 220V Model ) 200~250 VAC, 50 /60 Hz
Load
 ( 110V Model ) 15 Amps each Outlet or 15 Amps Total
( 220V Model ) 10 Amps each Outlet or 15 Amps Total
Breaker
 ( 110V Model ) 15 Amps
( 220V Model ) 15 Amps
Serial Communication
Console RJ45, RS-232 Level
Dry Contact UPS
 Male DB9, RS-232 Level


Remote Control Indicator
 1 Red LED X 8 Channel
Outlet Power Indicator
 1 Green LED X 8 Channel
Current Meter
 6 Orange LED X 9 Channel
Input Status Indicator
 Green 7-Segment X 3
Buttons
 8 Remote Control Buttons and 1 Reset Button
Digital Output
 2 Channels (switch voltage: 48VDC/ 10 A max.)
Supported Web Browser
 IE 5.0 + , Netscape 6.2 + , Opera 6+, Mozilla 1.5+,
FireFox 1.0, Other browser which is compatible to above

Network Protocols & Security

TCP/IP, UDP/IP, SNMP V1, SNTP, DNS, DHCP, SMTP,
HTTP, Telnet, TFTP, SSL V3, SSH V1
Operating Environment
Temperature 0° C ~ 40° C
Humidity 10% ~ 80% non-condensed
Warranty Two years



 â€» The specification may be changed without notice; contact our sales for the latest information.

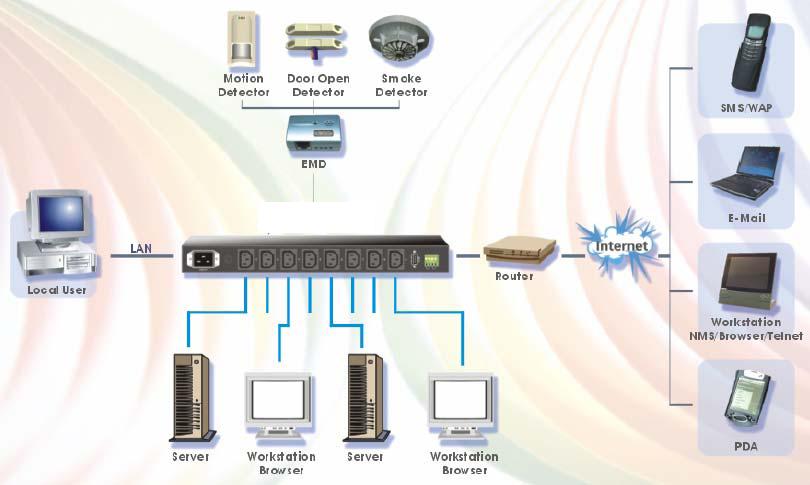

Appications & Diagrams

This is a picture of a application and diagram for the 8 way switched pdu
