PLAE Three Phase UPS - 20KVA & 30KVA
Features & Benefits
The PLAE three phase UPS comes with a three phase input and a single phase output. It contains internal batteries up to an autonomy of 15 minutes. Even if it has got a singlephase output the PLAE has excellent overloading features that are ideal for the protection of office workstations and for the control of production lines. As well as being a reliable product it is in fact compatible with an extensive set of communications interfaces.
| Online system double conversion |
| Transformerless technology for infinity series |
| Output isolating transformer |
| Low input distorsion |
| Automatic and manual by-pass |
| Two-way static switch |
| Automatic battery test |
| Inverter IGBT technology with high frequency commutation |
| Supplying distorted loads, containing output voltage distortion w/ high crest factors |
| High immunity to external disturbances |
| Independent control on the three inverter phases |
| RS232-RS485 interfaces and usb on the infinity series |
| High instantaneous overload capability |
| Very robust thanks to steel cabinet |
| High mtbf (>150.000 h) & Low mttr (<0,5h) |
| Technology born for powerplants and off-shore platforms on all product lines |
| High efficiency starting at 25% load with low operating costs |
| Easy installation and maintenance;total accessibility from the front |
| Reduced dimensions (iternal battery drawers up to 30 kva ups) |
| Easy to use and manage, with guided start-up and state-of-the-art diagnostic |
| SNMP/Modbus |
| Control software for windows |
| Teleservice available |
Screen Shots
Specifications
20KVA UPS |
30KVA UPS |
|
|
UPS Toplology |
On-line double conversion | |
|

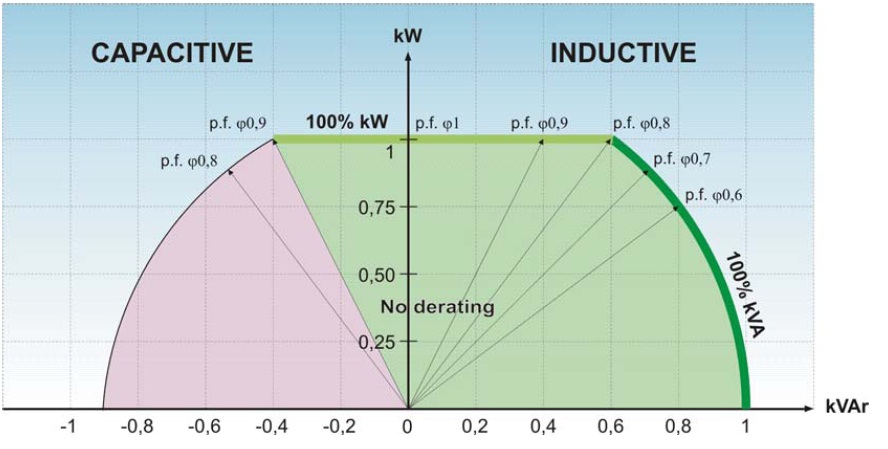

Output Power (CosΦ 0,8) - KVA |
20 | 30 |
|
Output Power (CosΦ 1) - kW |
16 | 24 |
|
Efficiency (AC ÷ AC) - % (ECO mode) |
> 90 | |
|
Efficiency (AC ÷ AC) - %) |
> 90 | |
| Heat dissapation at nominal load - kW | 2.67 | |
|
Audible Noise Level (according to EN 50091) |
< 58db | |
|
EMC compatibility |
According to "EN50091-2" (CE label) | |
| Standard battery type: lead acid -no of cells | |
192 |
|
Nominal Imput Voltage - Vac |
380, 400, 415 (+/- 10%) | |
|
Inverter Bridge |
IGBT (High Frequency Commutation) | |
|
Nominal Output Voltage - Vac |
220, 230, 240, (+/- 1%) | |
|
Output Frequency (Hz) |
50 - 60 Hz (selectable) | |
|
Overload Capability |
125% for 10 minutes | |
| Overload Capability |
150% for 1 minute | |
|
Output Harmonic Distorsion With Linear Load |
< 2% | |
|
Output Harmonic Distorsion With |
< 5% | |
|
Output Harmonic Distorsion IEC 62040-3 |
Completely complying | |
|
Crest Factor (Non Linear Load) |
3:1 | |
|
Autonomy |
0 / 10 / 20 / 30 / 60 / 130 minutes |
0 / 5 / 15 / 20 / 40 / 60 / 90 minutes |
| Dimensions | 690x865x1340 | |
Application Options
| ARC | Free Voltage Contact Card |
| Additional alarms | INT5ARC + 2ARC |
| UPS Software | Management Click here |
| Additional licenses | Remote Shutdown Clients for each server |
| SNMP Adapter | Simple Network Management Protocol |
| TCP/IP Adapter | All information can be available via the web for monitoring & control |
| JBUS/MODBUS Interface |
Hardware and software supplied to connect the UPS to a remote PC through a telephone line. The remote PC can dial the UPS through a modem and a dedicated line, check the status and read the information about alarms, if pending |
| Monitrong | Software Voyager/E |
| Thermal Compensation | Battery charge |
| D Interface | Diesel generator interface |
| Boost Charge | Bosst the charge of the batteries |
| Remote EPO |
The voltage supply to the loads can be interrupted from a remote location by using the remote EPO option (i.e. for safety requirements). A normally closed contact must be connected to the UPS terminal board; when this contact is open the inverter and by-pass static switches are disabled so that the output supply is interrupted |
| Fused switch | For the battery |
| By-pass | Insulation Transformer |
